As part of a school group project, I designed and built a custom robotic arm. It used geared DC motors with PID control and magnetic angle sensors for positioning. The arm was integrated with an off-the-shelf AI vision camera, enabling it to detect objects by color and pick them up

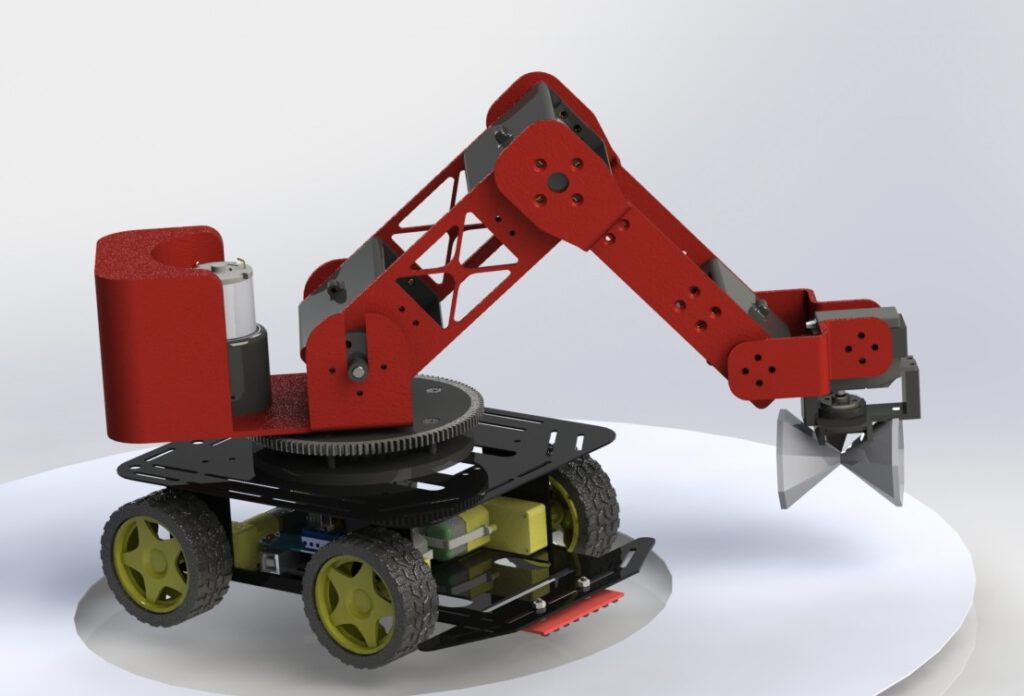

Robotic Arm CAD render

The initial designs used off-the-shelf RC servo motors for the arm joints. These position-controlled servos include internal sensors and control algorithms, so no external control loop is required. They typically offer 180° motion and 15–70 kg·cm of torque, with high-torque models being costly and power-hungry. Considering these factors, the final design used three geared DC motors in PID-loop control with magnetic angle encoders for the base rotation and the two main joints. The last joint carries the lowest load due to leverage, so a standard RC servo was sufficient, and its smaller form factor kept the end effector compact

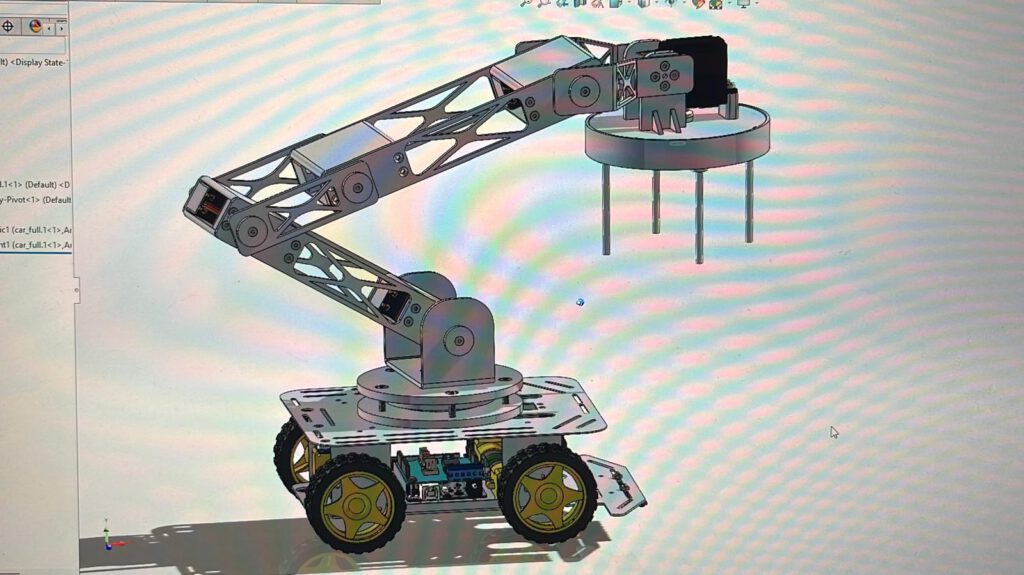

First itteration, RC servo based design

The final design combined laser-cut aluminum sheets with 3D-printed parts. While 3D printing is commonly used in school projects for its simplicity, it often leads to oversized monolithic parts that cannot be manufactured by conventional methods. I aimed to minimize reliance on 3D printing and instead applied conventional techniques such as sheet metal fabrication and lathe turning.

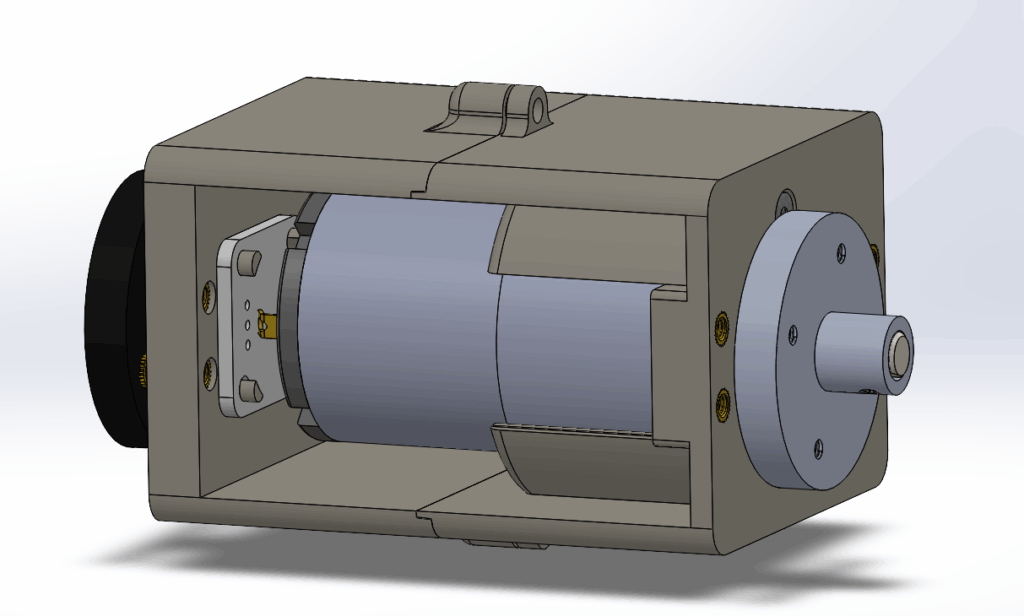

DC motor arm joint

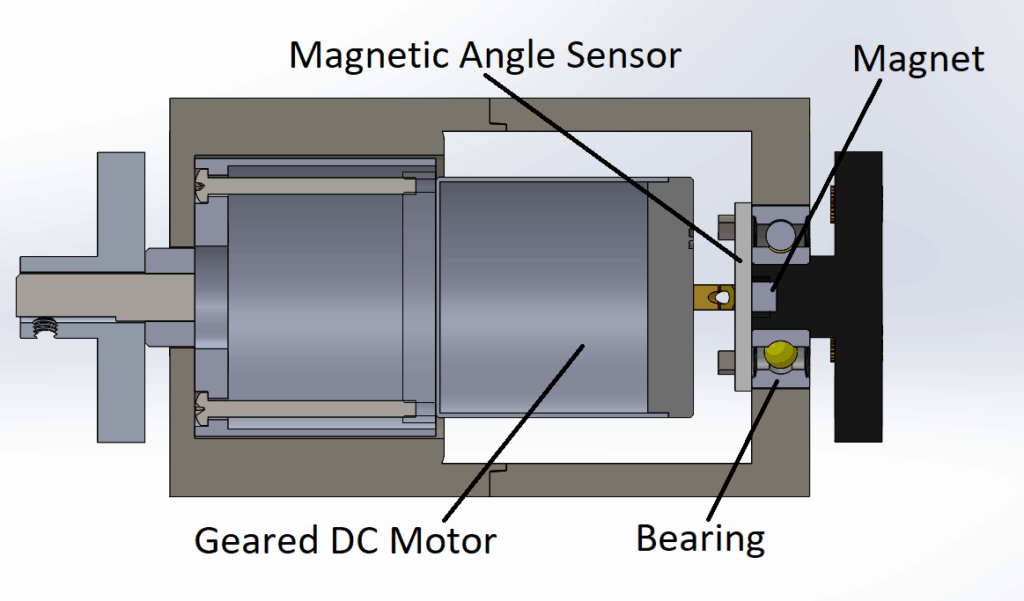

Section view

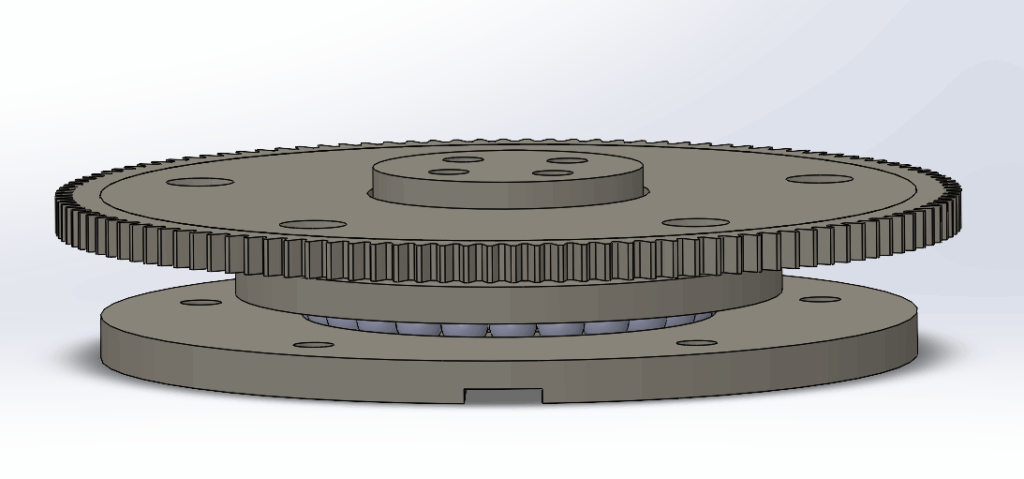

Axial pivot bearing

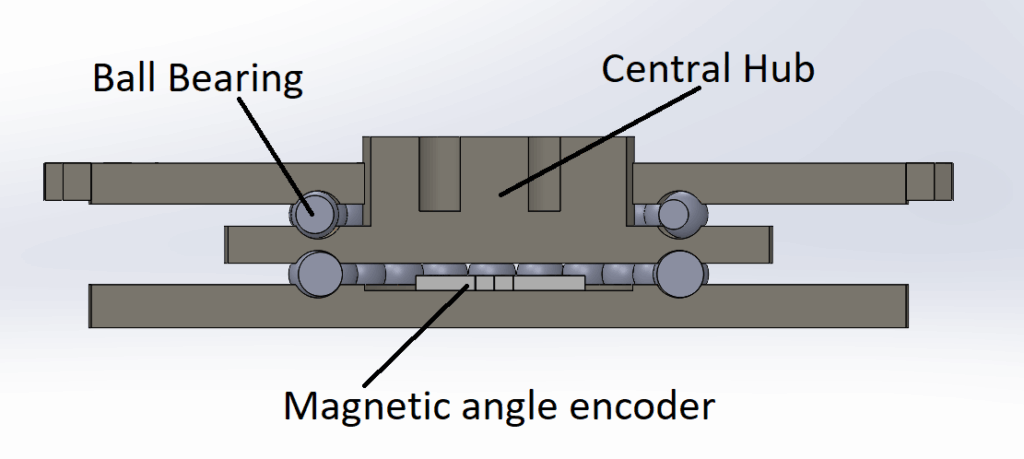

Section view

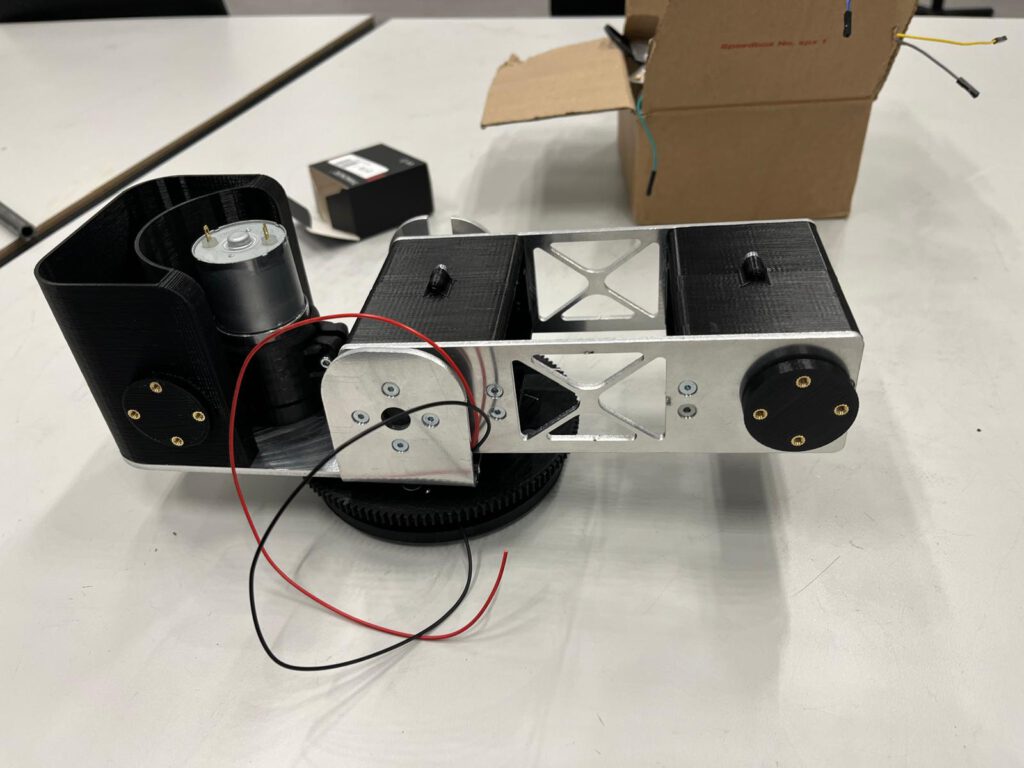

Partially assembled robotic arm
